In-Storage Acceleration of Retrieval Augmented Generation as a Service

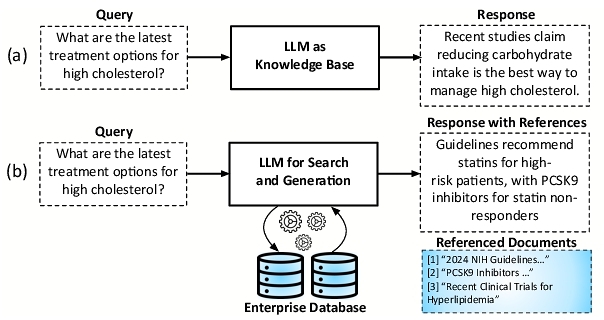

Prerequisites and graph metadata: To perform similarity checks efficiently, RAGs generate a vector database representation of documents in the enterprise knowledge base [24]. This offline process is performed once and involves segmenting each document from the database into passages and embedding them using a transformer-based neural network such as ColBERT  [36] or GTR  [63]. These embeddings represent each passage of the documents in the database as high-dimensional dense vectors that preserve the semantics of the text, which is essential for similarity checks. These embeddings are stored in a vector database that uses graphs to expedite the search [12, 30, 47, 57]. These graphs, which we refer to as metadata, consist of vertices pointing to the actual embeddings and are typically stored in DRAM for fast navigation. While each vertex of the graph points to an embedding, the existence of edges denotes semantic proximity between the corresponding embeddings. As such, when searching to identify the most relevant and similar passages to the query, the metadata graph enables quick navigation of the vector database by skipping irrelevant portions and exploring the most semantically relevant entries.

On the other hand, the embeddings themselves, which are much larger, are typically stored on low-latency NVMe storage drives in cloud environments [3, 5, 9, 22, 30, 38, 75, 78, 87, 91]. The original passages are stored separately in object storage such as Amazon S3, leveraging its cost-effectiveness for large-scale unstructured data. This multi-tiered approach balances performance with cost, enabling RAGs to efficiently handle large volumes of data. The vector database and metadata graph are algorithmic techniques designed to expedite RAGs that perform similarity checks intertwined with frequent, iterative storage accesses when servicing queries.

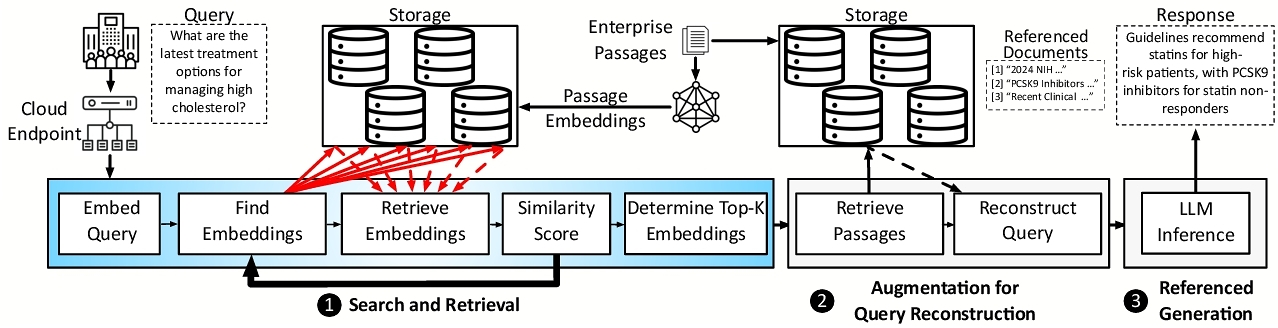

As Figure 2 shows, the RAG workflow, deployed as a service in a disaggregated datacenter, begins when a customer submits a query to the datacenter gateway, which acts as the entry point. After performing basic integrity checks and load balancing, the query is dispatched to specialized nodes for the Search & Retrieval process.

❶ Search & Retrieval . This phase begins by transforming the query into a vector representation using the same neural embedding model, which is a language model like ColBERT  [36] or GTR  [63], applied to the passages in the offline phase. This transformation is crucial and enables direct comparison between the query and passage representations using vector distance computation functions (e.g., cosine similarity, ℓ²-norm). The similarity search then proceeds by utilizing the metadata stored in DRAM to efficiently traverse the database and identify embeddings that are most similar to the query. Using the metadata graph, only a subset of the embeddings is retrieved from the vector database in an iterative manner. Each iteration retrieves a subset of passage embeddings from NVMe storage and calculates a similarity score for each of them. Then, based on these calculations and the structure of the graph metadata, the next set of embeddings to be retrieved from the storage is determined. This process is inherently iterative, involving multiple rounds of interleaved graph traversal, storage access, and score calculation.

In disaggregated datacenters, these storage requests are managed through a storage access layer. Despite using high-performance NVMe storage, which offers best-in-class low-latency local storage [90], each access still incurs latency due to PCIe interface traversal and data retrieval operations. The sequential nature of this process creates a critical bottleneck, as each iteration depends on the results of the previous, limiting opportunities for parallelization or prefetching. This iterative process manifests as a series of alternating storage accesses and similarity computations. The cumulative effect of these repeated sequential storage operations substantially increases the overall system latency. Hence, RAGs face significant challenges when increasing to larger databases in production environments, as detailed in §2.4.

❷ Augmentation for Query Reconstruction . The objective of the Search & Retrieval stage is to identify the top-k passages that have the highest similarity score to the query at hand. Once identified, these top-k passage IDs are sent over the network to an Augmentation for Query Reconstruction node where the main document database is accessed to obtain the original corresponding text. It is common for the original text to be stored in key-value storage for unstructured data (e.g., AWS S3). Although this tier has higher latency compared to NVMe storage, this final retrieval step occurs only once per query, in contrast to the iterative accesses to storage during Search & Retrieval. The multiplicity of retrieved passages is used to augment the original query to create a new one with the context from the database. As such, with this similarity-based search and augmentation, RAG aims to effectively extend the context of LLMs with an entire database.

❸ Referenced Generation . In the final stage of the RAG workflow, the augmented query is sent to a high-performance server instance over the network, such as a DGX A100 GPU cluster, which runs the LLM inference to generate a response. This stage leverages the computational capabilities of GPUs to process the augmented and context-rich query efficiently. The generated response also now has concrete citations to a source document in the database. As such, the response can be traced back and verified, crucial for the majority of enterprise applications that cannot tolerate hallucinations.

Having established the deployment architecture and workflow of RAGs in disaggregated datacenters, we now dive deeper into the retriever component. The retriever is the module that uses the metadata to search and identify the most relevant passages for query augmentation, which involves iterative accesses to the storage and, thus, incurs their overhead. Retrievers used in RAG can be broadly categorized into two types: embedding-based and keyword-based. Despite their algorithmic differences, our analysis reveals that both types share similar structural patterns in their implementation and face comparable challenges in terms of storage access and computation.

To better understand the interactions and bottlenecks in both types of retrievers, we conceptualize their operation across three planes: the representation plane for retrieval (located in direct-attached NVMe storage), the metadata plane for search (stored in DRAM), and the compute plane for search and retrieval. This conceptual separation allows us to clearly identify where and how storage access bottlenecks occur in both keyword-based and embedding-based retrieval systems.

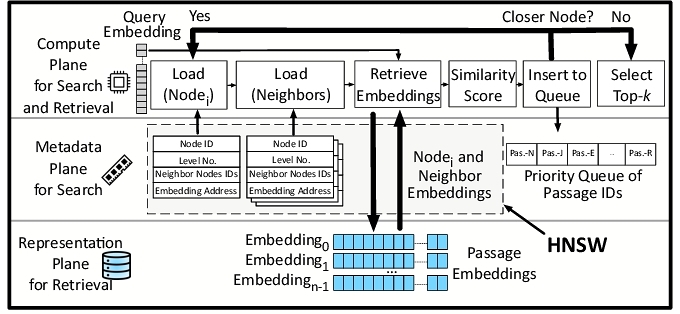

The retrieval process starts when a query arrives and is embedded by the same transformer-based encoder. Next, an initial vertex is designated as the current vertex from the graph, which serves as a starting point for the search. Structurally, HNSW is designed such that neighboring vertices are the most similar semantically. Each vertex contains a pointer to its corresponding embedding in the representation plane in the NVMe storage device, as Figure 3 shows. Using these pointers, the compute plane fetches the embeddings from NVMe for the current vertex and its neighbors. Then, it computes the similarity score using a distance metric (e.g., cosine similarity or ℓ²-norm) to score all the neighbors. These distance calculations determine the similarity between the query and potential matching passages. The retriever then chooses a subset of the neighbors that have the smallest distances (i.e., the highest similarity) to continue its search. The neighbors with the highest similarity score are the most promising vertices in the graph to explore. Each neighbor now becomes a current vertex, and its neighbors’ embeddings will be retrieved from the storage and examined next through distance calculations. This interleaved storage-compute search cycle using the graph is repeated until the top-k most similar passages to the query are identified.

As discussed, each step in the search process for the embedding-based retriever depends on the previous step, introducing a sequential dependency and making the storage accesses for embeddings a significant bottleneck. This characteristic makes embedding-based retrieval particularly sensitive to storage access latencies, especially when dealing with large databases containing copious passages. Despite the graph metadata that prevents retrieving and examining every embedding from storage, making the search more sample-efficient, the search still comprises iterative storage accesses with a sequential dependency to computation. This major bottleneck calls for innovations to manage storage access overheads, even when local NVMe and algorithmic optimizations are rigorously utilized.

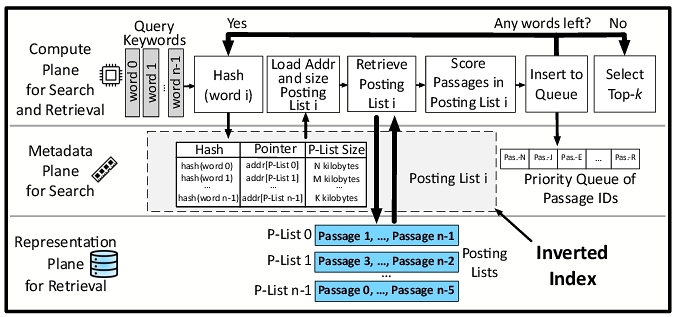

The search process aims to find relevant documents and begins when a query arrives and undergoes a vector generation process that depends on the retrieval algorithm. One class of more traditional algorithms (e.g., BM25  [76]) tokenizes the query into individual keywords. The other more modern class (e.g., SPLADEv2  [16]) passes the query through a transformer-based encoder to generate an embedding. This embedding vector not only captures keywords that are in the query but also represents semantically related keywords that are not explicitly mentioned. Each word in the embedding (keyword or a semantically related word) is then hashed to a pointer that identifies the corresponding posting list in storage. The hash of pointers from either the tokenized keywords or the embeddings constitutes the inverted index, which is metadata for Search & Retrieval and is kept in memory. Given the inverted index, the keyword's posting list is retrieved from NVMe storage in the representation plane, which contains passage IDs and keyword frequencies.

For each keyword in the query, the retriever uses the inverted index to find and locate all the posting lists that contain the keywords or their semantically related words. Each passage in the posting list is then scored based on a scoring metric such as TF-IDF (Term Frequency-Inverse Document Frequency) to calculate which passages have the most keyword overlap with the query. These scores are then inserted into a priority queue based on their overlap score. This process repeats for each keyword in the query. Once finished, the top-k passages can be popped from the front of the priority queue that has the highest score in terms of keyword overlap with the query. Although this computation can be performed independently for each keyword, the storage needs to be accessed for each keyword, and the access latency is higher than the computation latency. That is, the disparity between storage access and computation latency makes storage the main bottleneck, causing serialization of the operations.

Structural similarities and challenges. Both keyword-based and embedding-based retrievers exhibit structural similarities in their storage access patterns and computational requirements. They both rely heavily on iterative storage accesses to retrieve representations (embeddings or posting lists) from NVMe storage. Both classes also employ a metadata structure (graph or inverted index) to guide the Search & Retrieval process. The key challenge for both classes lies in the interdependence and interleaving of storage and computation. Furthermore, as the database grows, the associated metadata and representations (embeddings or posting lists) grow proportionately. As such, finding the most relevant passages requires a larger number of storage accesses, making the bottleneck more pronounced.

To empirically quantify the performance characteristics and bottlenecks of RAGs, we conduct comprehensive experiments on AWS using five diverse RAGs with various retrieval algorithms (see Table 1).

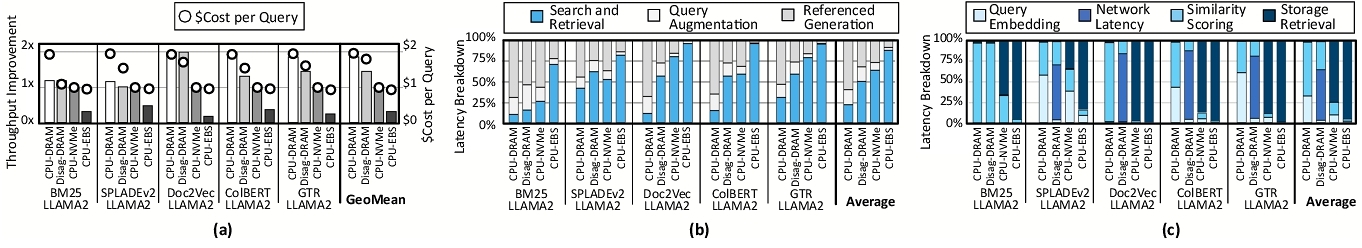

Performance-cost trade-offs in RAGs. Figure 5(a) reports the normalized throughput and $cost per query for various retrieval configurations using 5 million passages from the PubMed dataset [24, 62] relative to a CPU-NVMe baseline. The CPU-DRAM configuration, which stores all passage embeddings in DRAM and performs query embedding on the CPU, achieves the highest throughput–1.9 × that of the baseline–by avoiding high-latency storage accesses. However, this performance gain incurs a 117% increase in $cost per query, making it impractical for large-scale deployments with cost constraints. This trade-off underscores the increasing adoption of SSD-based storage for representations in both industry [9, 30, 38, 78] and academia [3, 5, 22, 75, 87, 91], which seek to balance throughput with storage capacity and operational cost. Recent studies, such as one from Alibaba [5], reinforce this trend, emphasizing that SSD-based secondary storage is essential for efficiently handling large-scale vector searches in modern services, including RAGs.

Search & Retrieval is the primary bottleneck in RAGs. Figure 5(b) shows the runtime breakdown of the benchmarks with two AWS storage configurations (local NVMe and networked EBS) using 5 million passages. While the AWS NVMe setup uses direct-attached local storage, the AWS EBS employs network-attached storage. In line with current deployments and research [17, 33, 44, 81] that show using GPUs is beneficial for LLM inferencing and not for retrieval and augmentation, we run those phases on a Xeon CPU while the LLAMA2 (34B) is running on A100 GPUs. Even with local NVMe, Search & Retrieval accounts for, on average, 61% of the total latency, and this increases to 88% when networked EBS storage is used.

In current systems, retrieval from storage dominates the Search & Retrieval phase. Looking into the Search & Retrieval phase, we find that the retrieval latency for representations from storage is the main bottleneck in current systems. Figure 5(c) quantifies this impact by showing the runtime breakdown of the Search & Retrieval phase. Even in the local NVMe configuration, 74% of the runtime is consumed by storage access, increasing to 94% with networked EBS storage. The use of an HNSW metadata graph reduces the number of storage accesses to 395 with 5 million passages and the ColBERT embedding-based retriever. Nonetheless, storage accesses are still the bottleneck. Each storage access incurs an average latency of 155 μs on a Samsung 970 EVO NVMe SSD, which gets compounded with the iterative nature of the Search & Retrieval phase (see §2).

Co-locating query embedding with Search & Retrieval is imperative. Given the size of embedding models like ColBERT and Google's GTR (419.62 MB), the potential for accelerated processing becomes apparent. One could imagine delegating the query embedding, which requires inference with a language model, to a GPU. However, in disaggregated datacenters, this would mean performing query embedding on a separate node and incurring an additional network latency to retrieve the embedding (see §5.2.5). To highlight the limitations of using a disaggregated GPU for embedding offloading, we analyze an idealized scenario in which all embedding vectors are stored entirely in DRAM. This setup eliminates storage access latency, allowing us to isolate and emphasize the overheads introduced solely by the disaggregated GPU architecture. As shown in Figure 5(a), this Disag-DRAM system results in a 28% lower throughput for a dataset with 5 million passages (11% for 50 million passages; see Figure 11) compared to the non-disaggregated CPU-DRAM system. This is due to network overhead that adversely affects disaggregated setups like Disag-DRAM, where embedding generation is offloaded to a GPU node. Our measurements show an average of 86 ms latency between two AWS EC2 instances deployed in the same zone (US West), measured at random times over the course of a week. The use of NVMe to store the embeddings would exacerbate the aforementioned results (see Figure 11). The Search & Retrieval phase, which also includes query embedding, still contributes 24% and 58% of the total runtime for datasets with 5 million and 50 million passages, respectively (see Figure 11). This additional latency negates the performance gains achieved by removing storage overheads. Thus, eliminating storage accesses and co-locating query embedding with Search & Retrieval is imperative to eliminate network overheads and ensure efficient query processing in disaggregated datacenters.

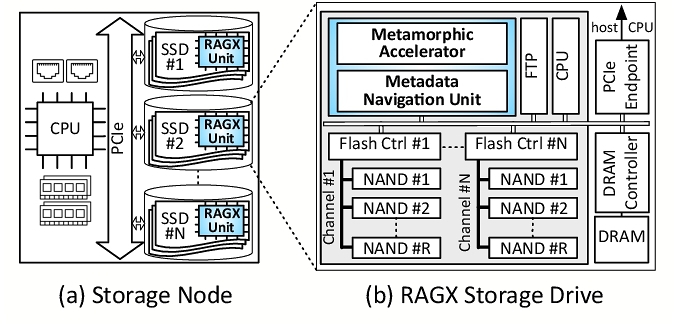

To leverage the full potential of in-storage accelerators co-located with NAND flash and to address the challenges posed by increasingly large databases, RAGX introduces system primitives for multi-storage acceleration. These primitives facilitate efficient data movement between the storage and the accelerator, manage dynamic reconfiguration of the hardware, and enable direct communication with the host system and other accelerators through extended NVMe commands, all while maintaining compatibility with existing system primitives.

Host interface. To expose RAGX’s capabilities to the host system, we extend the NVMe command set with custom admin and I/O commands. These commands allow the host to offload both query embedding and the Search & Retrieval tasks to RAGX’s metamorphic accelerator, configure its operational parameters, and retrieve results. The extended command set is backward compatible with standard NVMe operations, ensuring the SSD can function normally.

Firmware integration. We extend the SSD's firmware to include a RAGX driver that manages communication between the host, SSD controller, and the metamorphic accelerator. This driver handles task scheduling, resource allocation, and power management for RAGX, integrating its operations seamlessly with the SSD's existing firmware.

Host-device communication. The metamorphic accelerator and the flash storage use the same PCIe links to communicate with the host. A switch in the computational storage routes requests to either the flash storage device or the accelerator based on the request type.

Device-to-device communication. RAGX supports multi-device execution to handle larger dataset sizes. As will be discussed, we use a data placement strategy that prevents inter-device and inter-accelerator communication during retriever execution. However, during the initiation of the execution, there is configuration data that needs to be transferred between different devices and their metamorphic accelerators. Furthermore, in multi-device execution, we use a single RAGX storage drive to embed the query and then broadcast the embedded query to the other RAGX storage drives. To accomplish this, the peer2peer PCIe connection between the storage devices is used and, as such, bypasses the host CPU.

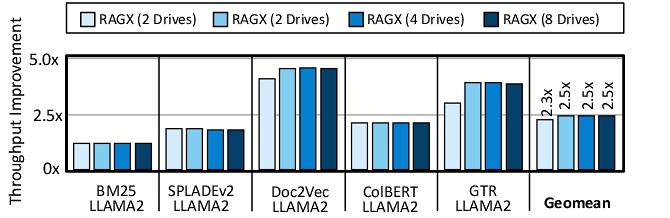

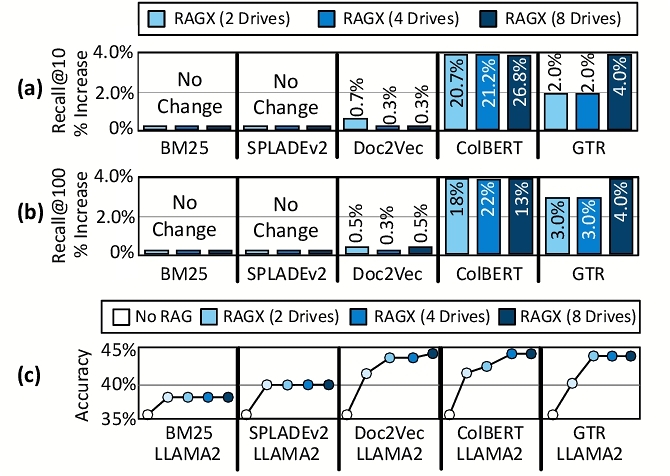

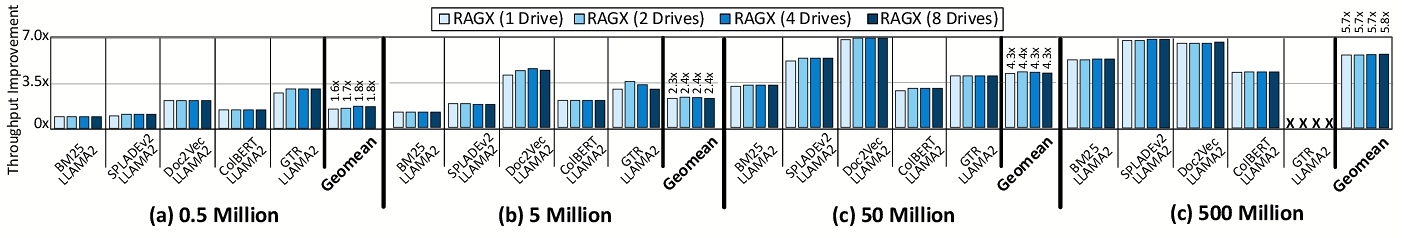

Private, smaller HNSW graphs for embedding-based multi-device in-storage acceleration. To manage representation databases that exceed the available capacity of a storage drive, RAGX supports multi-device in-storage acceleration. The data that RAGX deals with is the collection of embeddings and the associated HNSW metadata graph for the embedding-based retrievers. The HNSW metadata lives in the DRAM, but the embeddings need to be stored in the NAND flash. For multi-device execution, the embeddings and the metadata need to be allocated to keep the computation local and avoid inter-device communication. Hence, instead of using a single HNSW for all the data, which is shared across multiple devices, we partition the passage embeddings and generate a dedicated private HNSW for each device, which is smaller. The trade-off here is that the cumulative computation across all devices is greater than in the case of a single, larger HNSW. However, with our setup, there is no costly device-to-device communication. Moreover, the devices perform computation in parallel without dealing with a centralized HNSW, which would have been a bottleneck. In addition, since each device is searching a smaller graph in parallel with other devices, the recall stays the same or may even improve. On the other hand, there is an increased cumulative amount of computation, leading to an increase in local energy consumption. However, the overall energy consumption decreases. We perform rigorous empirical studies in §5.2 to quantify all the aspects of this data partitioning and its trade-off.

Replicated inverted indices for keyword-based multi-device in-storage acceleration. For keyword-based retrievers, although we evenly partition the posting lists, the metadata (inverted index), is replicated across all devices. The host CPU also holds a copy of the inverted index and identifies which devices need to process which keywords. The CPU initializes the corresponding devices with their list of keywords. As discussed in §2.3, the computation of each keyword with the keyword-based retrievers is independent of the other keywords. Therefore, the participating storage devices do not need to communicate during the execution. After processing their allocated keywords, all devices send their results back to the host CPU that does top-k selection for augmentation and generation. Overall, each drive performs a local similarity search, and the results are aggregated on the CPU for top-k selection. This process ensures that, for a given query, the representation database is sufficiently explored while leveraging the speed of local processing on each drive.

To address these challenges, we propose a metamorphic architecture that shape-shifts from a systolic-based neural accelerator to a collection of parallel SIMD units. This is because various distance metrics cannot effectively utilize the 2D systolic array and are more appropriate for single-dimensional vector execution. Fortunately, these computations are performed in disjoint phases, providing an opportunity to reconfigure the same architecture for different forms of execution. To that end, the metamorphic accelerator in Figure 7, with limited modifications, converts the columns of a systolic neural accelerator into a collection of vector processors. This dynamic shape-shifting also matches the insight that the distance computation in RAG both for keyword-based and embedding-based retrieval methods can be decomposed into the following two phases. (1) A series of simple element-wise vector operations that can be efficiently mapped onto the 2D systolic unit. (2) A series of complex operations, such as normalization, that can be handled by a set of vector units. This insight allows us to maintain the efficiency of a 2D systolic array for the bulk of the computations while introducing targeted enhancements to support the full range of RAG operations. To support both modes (systolic and vector) efficiently, the processing element is systematically enhanced with additional arithmetic units and control logic.

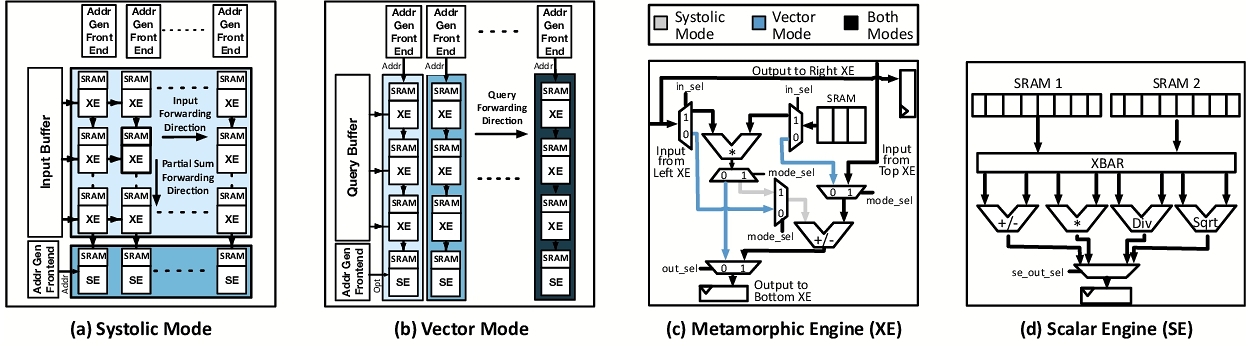

As shown in Figure 7, the architecture supports a shape-shifting execution model that dynamically reconfigures a systolic array of metamorphic execution engines (XEs) and a set of scalar engines (SEs) located beneath the array. Each column of the systolic array is equipped with a vector processor front end positioned above the XEs. This front end becomes active when the architecture transitions into vector execution mode. This metamorphic design builds upon conventional systolic and vector execution paradigms. The systolic mode is optimized for general matrix multiplication (GeMM), while the vector mode targets non-GeMM computations such as distance functions in retrieval workloads. We observe that distance functions can be efficiently mapped to this architecture with minimal modifications to the PE microarchitecture (see Figure 7(c)). In systolic mode, each XE functions as a conventional PE. The internal multiplexers (control path set to one) are configured to enable the operand and partial sum forwarding paths typical of systolic execution. Each PE contains a fused multiply-accumulate (MAC) unit, a local weight buffer, input/output registers, and forwarding logic for propagating data along the systolic wavefront.

When transitioning to vector mode, control logic reconfigures multiplexers to reroute data through a vertical operand pipeline. Each column of XEs is dynamically reinterpreted as a vector engine, where each XE implements one pipeline stage. In this setup, the architecture exploits fine-grained vertical pipelining to achieve vector parallelism. The vector processor front end atop each column fetches instructions, generates addresses, and distributes control signals. Operands are stored in scratchpads within each XE (repurposed from weight buffers used in systolic mode). Vertical registers between adjacent XEs are enhanced to act as pipeline latches, passing data and metadata (e.g., addresses) to the next stage. All XEs in a column execute the same operation, defined by the current vector instruction. However, each column operates independently, maintaining its own program counter and instruction stream via its front end. This design allows different vector engines to execute distinct vector kernels concurrently.

Metamorphic execution engines (XEs). Each XE supports two execution modes: it acts either as a PE in systolic mode or as a pipeline stage in vector mode. The core components of the XE, shown in Figure 7(c), include a MAC unit for GeMM operations, a local buffer that serves as a scratchpad in vector mode, and a set of input/output registers. The shape-shifting functionality is enabled through a network of multiplexers controlled by a mode configuration bit set by the global execution controller. These augmentations allow the XEs to switch between dataflow (systolic) and pipeline (vector) operation with minimal area overhead while reusing much of the existing PE microarchitecture.

Scalar engines (SEs). To support complex scalar operations required by RAG, each column includes an SE positioned below the XE pipeline. These scalar engines, which are shown in Figure 7(d), implement high-latency, resource-intensive functions such as division, square root, and logarithm operations frequently used in retrieval scoring functions. For example, SEs compute square roots for ℓ²-norm or logarithms for BM25 scoring. In vector mode, each SE operates as an extension of its corresponding vector engine, executing scalar instructions that accompany vector instructions. Specifically, each vector engine executes an instruction pair of the form ⟨ vector, scalar⟩, where the scalar instruction typically follows the vector operation to complete the final computation step. In systolic mode, the SEs are collectively reconfigured to form a standalone horizontal vector processor. The front-end unit for this processor is located at the bottom left of the array, as depicted in Figure 7(a). This horizontal vector engine complements the systolic array during neural network inference, particularly for embedding computations that require vector operations beyond GeMM (e.g., normalization, bias addition). Additionally, in embedding-based HNSW retrieval, SEs play a critical role in graph traversal by sorting vertex scores after each iteration. The sorted results are then written to a DRAM-resident priority queue that guides the selection of the next nodes to evaluate.

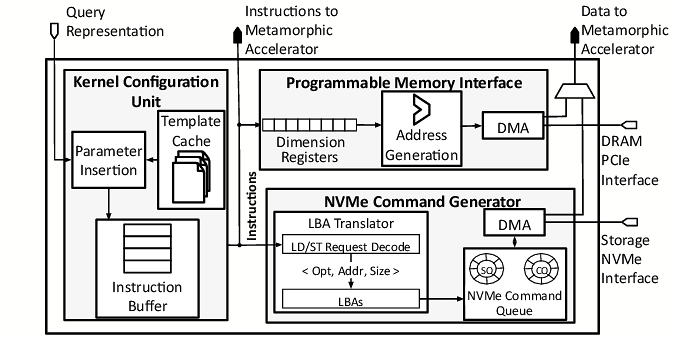

Besides performing the computation, there is a need for a unit that supplies the appropriate data to the metamorphic accelerator. This unit needs to navigate the metadata, which is the HNSW graph for embedding-based retrievers and the inverted indices for the keyword-based retrievers. The important point is that before receiving a query and accessing these metadata structures, the exact size of the data vectors and their locations are unknown. Therefore, there is a need for a unit that first walks over the metadata and determines the number of neighboring embeddings in the case of HNSW and their location in the storage. Then it can load the appropriate data from the NAND arrays of the storage either directly to on-chip memory or the DRAM if necessary. Similar steps need to be taken for keyword-based retrievers, except that they involve the inverted indices and the posting lists. Note that this is just one step of the iterative process of Search & Retrieval. After the data sizes are determined, the metamorphic accelerator can be properly configured to perform the computation. To address this need for data-dependent configuration and setup for the metamorphic accelerator, we introduce the Metadata Navigation Unit (MNU), which is shown in Figure 8. The MNU integrates three essential capabilities tailored to address the above challenges. First, it fetches the metadata stored in DRAM to determine the address and size of the representations to be retrieved from storage. Second, the MNU generates NVMe commands to retrieve the required representations through an integrated NVMe command generator. These commands enable efficient data movement to the proposed accelerator's on-chip scratchpads for computation. Finally, the MNU schedules computation using parametric pre-compiled kernel templates. At runtime, the MNU fills in kernel template parameters, such as embedding vector shape or posting list size, to generate customized kernels that match the query's requirements from the kernel templates. This flexible approach avoids the overhead of full runtime compilation while accommodating the diverse workloads of embedding-based and keyword-based retrievers.

Metadata interpretation. The first task of the MNU is to locate and determine the size of the query-dependent representations stored in NVMe. The metadata is retrieved from DRAM and varies based on the retrieval method. For embedding-based retrievers, the metadata identifies the embeddings associated with the current vertex in the graph traversal and its neighbors within the metadata graph. The sizes of the corresponding embeddings are calculated as embedding size × number of neighbors. For keyword-based retrievers, the metadata links keywords to their corresponding posting lists in the inverted index. Here, the size of the posting lists depends on the number of passages containing each keyword. By determining the size of the representations, the MNU ensures that memory access requests are tailored to the query's specific requirements, optimizing retrieval efficiency.

Retriever-specific kernel templates. Next, to handle the diverse retrieval algorithms, the MNU utilizes retriever-specific kernel templates. These templates encode the high-level structure of embedding-based and keyword-based code, with placeholders for parameters such as data sizes and dimensions. In embedding-based retrieval, templates specify parametric tiling and the mapping of embeddings to compute units that will be determined based on runtime data sizes. For keyword-based retrieval, templates describe scoring operations for priority queue management. By precompiling these templates offline and instantiating them at runtime, the MNU avoids the overhead of just-in-time compilation and maintains execution efficiency.

Kernel configuration unit. Expanding on the retriever-specific kernel templates, the MNU incorporates a kernel configuration unit that dynamically creates instances of these templates using parameters obtained from metadata. This unit has three key components: a template cache, parameter insertion logic, and an instruction buffer. The template cache stores pre-compiled templates for common retrieval tasks. The parameter insertion logic replaces placeholders in the templates with runtime values, such as embedding dimensions, neighbor counts, or posting list sizes. The instruction buffer then assembles the instantiated instructions and enables instruction-level parallelism to optimize execution. For example, for embedding-based retrieval, the unit fetches metadata specifying the number of neighboring vertices and embedding dimensions, fills the corresponding kernel template with these parameters, and dispatches it to the compute units.

Programmable memory interface (PMI). To handle the dynamic and variable dimensions of embedding-based and keyword-based representations, the MNU incorporates a programmable memory interface (PMI) that supports multi-dimensional memory access patterns with configurable bounds and strides. The PMI comprises three key components: dimension registers, stride calculators, and address generation units. Dimension registers store runtime-determined data sizes such as the length of posting lists or embedding dimensions. Stride calculators compute memory strides for accessing multi-dimensional data layouts, while address generation units issue memory fetch commands for nested loops and irregular data structures. For embedding-based retrievers, the PMI dynamically accesses embeddings corresponding to a variable number of neighbors. For keyword-based retrievers, it iterates through posting lists of differing lengths, ensuring high-throughput access with minimal overhead.

NVMe command generation. To translate internal fetch requests into standard NVMe read commands, the MNU incorporates an NVMe command generator. This module consists of three key elements: a command queue, an LBA translator, and a DMA engine. The command queue manages pending NVMe requests to maximize storage bandwidth utilization. The LBA translator converts logical addresses derived from metadata into physical logical block addresses (LBAs) for NVMe storage. The DMA engine supports scatter-gather operations, enabling efficient transfer of non-contiguous data regions into internal buffers. By leveraging the internal bandwidth of the storage device and bypassing the traditional PCIe interface, the NVMe command generator reduces data transfer latency and power consumption. For example, when fetching posting lists for a keyword-based retriever, the DMA engine consolidates the required regions into a contiguous on-chip buffer, optimizing data movement.

Mapping templates to the accelerator. The MNU determines how representations are mapped onto the metamorphic accelerator based on the retrieval type and query-specific parameters. For embedding-based retrievers, embeddings of size D for the query and its K neighbors are fetched and mapped as follows: the query embedding is unrolled across the N vector lanes of each XE, while the K neighbor embeddings are distributed across the N vector processors, with each XE processing a segment of the embedding dimension. For keyword-based retrievers, posting lists of length L are fetched and mapped such that term-specific elements (e.g., term frequency, document length normalization) are vectorized across vector lanes, while multiple documents in the posting list are distributed across the N vector processors. This hierarchical mapping ensures efficient utilization of all the XEs for both embedding-based and keyword-based workloads while dynamically adapting to the data layout and query characteristics.

Compiler support. For query embedding via a language model, we rely on prior work [20] that offers an open-source compiler for end-to-end neural acceleration. This is possible because, in the systolic mode, the metamorphic accelerator resembles a conventional neural accelerator. This compiler also provides support for vector execution that we leverage and modify for generating parametric kernels for similarity checks in Search & Retrieval. We develop a custom compilation module for the MNU to support both HNSWs and inverted indices.

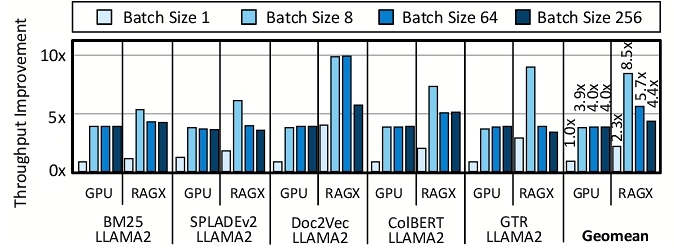

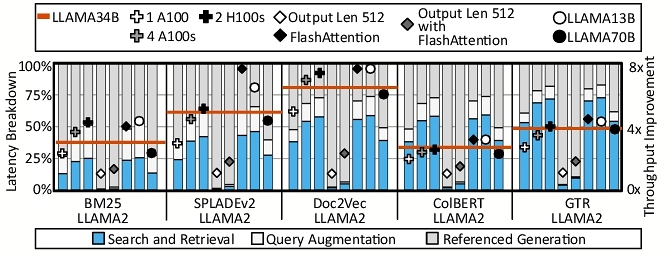

Benchmarks. Table 1 summarizes the five end-to-end RAG benchmarks, representative of the RAG pipeline shown in Figure 2. We use the RAGGED benchmark suite [24], incorporating additional benchmarks to broaden the evaluation scope. In the Search & Retrieval phase, we implement the retrievers using unmodified, default versions of Pyserini [48] for BM25, the official GitHub repository for SPLADEv2  [15], and Faiss's implementation of HNSW [13] for embedding-based retrievers, with all default optimizations and multi-threading enabled. For Referenced Generation, we use Meta's LLAMA2 (34B)  [84] deployed on two A100s with TensorRT-LLM and tensor parallelism. The input consists of an average of 850 tokens, a maximum context length of 4,096 tokens, and a batch size of 1 (up to 256 for sensitivity studies). The query dataset specifies 54 output tokens as the golden answer and is in line with prior studies [24, 46, 73] that recommend retrieval for ≤ 64 output tokens to maintain high recall. We scale to 512 output tokens for sensitivity studies. We set top-k to 100 for all evaluations [75].

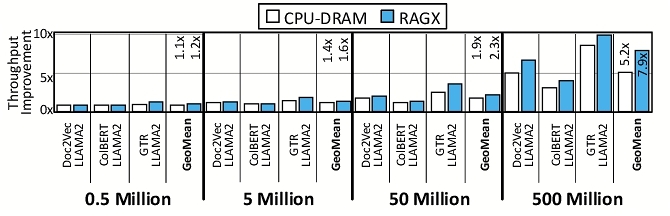

Dataset and database generation. We use the PubMed  [24, 62] biomedical database with four dataset sizes: 500 million (500M), 50 million (50M), 5 million (5M), and 0.5 million (0.5M) passages. To accommodate the 500M passage dataset, we augmented PubMed's 50M passages with randomly generated embeddings. For embedding-based retrieval, embeddings are generated using GPUs, and HNSW indices (Faiss, M = 32, efconstruction = 100) are built on CPUs. As per prior work [53, 54], we set efsearch to 375, 750, 1,500, and 3,000 for 0.5M, 5M, 50M, and 500M passages, respectively, to maintain a consistent recall as dataset size scales. As for the keyword-based retrievers, BM25 uses Pyserini for inverted index construction, while SPLADEv2 embeds passages before index generation. The vector database size for embedding-based retrieval is computed as P × D × T, where P is the number of passages, D is the embedding dimension, and T is the datatype size (4 bytes [13]). For example, ColBERT requires 500K × 128 × 4 = 256 MB for 0.5M and 500M × 128 × 4 = 256 GB for 500M, while GTR requires 500K × 768 × 4 = 1.5 GB and 500M × 768 × 4 = 1.5 TB, respectively. For keyword-based retrieval, storage depends on the number of unique tokens and index structures. BM25 0.5M requires 0.36 GB and 500M requires 320 GB. SPLADEv2 requires 0.18 GB for 0.5M and 178 GB for 500M. We evaluate using 3,800 BioASQ [39] queries, ensuring a fair comparison across all systems.

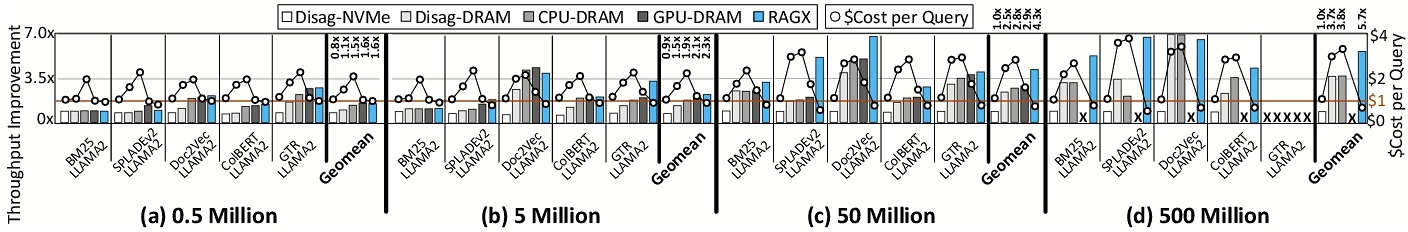

Baseline systems. We compare RAGX with the following systems. Table 2 details the specifications for the Search & Retrieval phase of each system. (1) CPU-NVMe (baseline): query embedded on the CPU, with representations (embeddings/posting-lists) stored on direct-attached NVMe SSD, metadata (HNSW/inverted index) cached in DRAM, and retrieval performed by the same CPU. (2) CPU-DRAM: query embedded on the CPU, with representations and metadata cached in DRAM, and retrieval performed by the same CPU. (3) Disag-NVMe: query embedded on a GPU, embeddings transferred to a CPU node over network (100 GbE Ethernet), which performs the Search & Retrieval from representations stored on NVMe SSD and metadata cached in DRAM. (4) Disag-DRAM: query embedded on a GPU, embeddings transferred to a CPU node over network, which performs the Search & Retrieval from representations stored in DRAM and metadata cached in DRAM. (5) GPU-DRAM: query embedding and retrieval both performed on the same GPU, with all representations and metadata cached in GPU memory (represents idealized zero-delay network communication). For all systems (including RAGX), we use the EC2 instance from  Table 2 for the Search & Retrieval phase with passages stored on AWS S3 and Referenced Generation performed on a DGX-A100 cluster (AWS p4.24xlarge instances) using one, two, and four A100 GPUs for LLAMA2 (13B), LLAMA2 (34B), and LLAMA2 (70B), respectively.

Baseline measurements. We deploy our benchmarks on AWS Sagemaker following the AWS blog and example code [78, 79]. This setup allows us to process a custom dataset (PubMed), generate a vector database, and store the representations on NVMe, DRAM, or EBS. For the Search & Retrieval phase, EC2 instances are provisioned (see Table 2), which fetch the top-k passages from AWS S3 and send them to an AWS p4.24xlarge GPU instance for Referenced Generation. We perform real measurements by running 3,800 queries from BioASQ, where each query traverses the entire RAG pipeline as described in §2.2. For each phase, we measure runtime using timers integrated into the code to ensure precise and accurate measurements. All results are based on the median latency of 3800 queries to ensure evaluation accuracy.

RTL implementation and prototyping. The metamorphic accelerator is implemented in Verilog and synthesized using Synopsys Design Compiler 2023.09 with the FreePDK 45 nm standard cell library, achieving a clock frequency of 1 GHz.

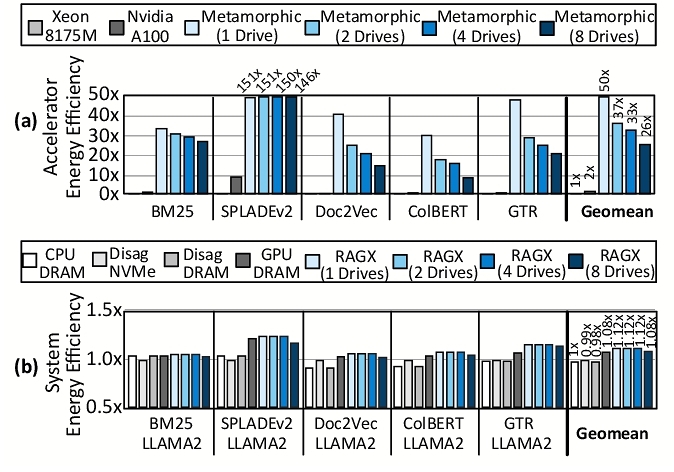

Metamorphic accelerator simulator. We develop a cycle-level simulator for the RAGX accelerator to evaluate its performance and energy consumption. Our simulator models all the parts of the proposed accelerator (§4) and accounts for all critical components: NVMe flash array reads, control logic for kernel scheduling, execution time on processing units, metadata traversal from DRAM using the MNU, and the network latency to transfer data between each phase since the deployment of RAGs is in a disaggregated datacenter setting. For embedding-based retrieval, we compile the embedding model using the compiler described in §4.3. To simulate the entire Search & Retrieval phase, we generate traces from baseline runs that capture how the system traverses the HNSW graph (embedding-based) or inverted index (keyword-based). These traces include vertex scoring sequences for embedding-based and posting list accesses for keyword-based retrieval. We use these traces to schedule instructions on our simulated accelerator, instantiating template kernels with actual metadata values. NVMe SSD access latencies are modeled using an open-source simulator [58]. This approach allows us to accurately measure performance and energy consumption for each operation, from data access to computation, providing a thorough assessment of RAGX’s capabilities across various scenarios.

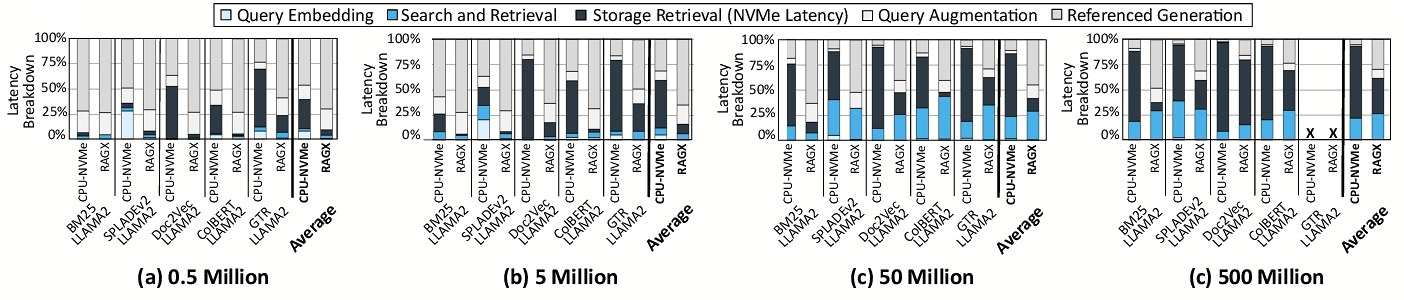

RAGX performance measurement. Real deployment of a research chip in the cloud is not currently feasible. We follow standard methods for accelerator research in the cloud [74, 88] that augments real measurements with careful and systematic simulation. To preserve the overheads of a disaggregated datacenter, we systematically replace the embedding, search, and retrieval times with the corresponding operations in the CPU-NVMe baseline on AWS, ensuring that network latencies and variabilities from other phases, such as S3 access, Augmentation for Query Reconstruction, and Referenced Generation, are included. We repeat this process for all 3,800 BioASQ queries and report the median latency to even capture the impact of outliers.
