A Stage-Aware Tool for Modelling and Verifying CI/CD Security Evidence

Continuous integration and continuous deployment (CI/CD) pipelines coordinate source-code changes, dependency retrieval, compilation, testing, artefact packaging, deployment, and runtime operation [1]. Each activity produces security-relevant information, including workflow events, scanner findings, test results, identity records, artefact metadata, policy decisions, and runtime alerts. Although these records may reveal insecure behaviour, they are commonly distributed across heterogeneous tools and storage systems, a concern reflected in CI/CD guidance and large-scale analyses of workflow overprivilege and third-party action use [2, 5]. Consequently, an investigator may know that a scanner reported a vulnerability, a test was skipped, or an artefact digest changed, but still lack an explicit representation of where the observation occurred, which requirement it affects, how it relates to other pipeline events, and whether the supporting evidence has remained unchanged.

Existing CI/CD security mechanisms address important parts of this problem. Scanners identify vulnerable dependencies or insecure code, policy engines enforce deployment conditions, signing systems establish artefact provenance, and observability platforms aggregate logs and alerts. However, their outputs often remain isolated and tool-specific. A scanner finding does not inherently describe its relationship to a subsequent deployment, while an anomaly score does not explain which pipeline obligation was violated. Similarly, preserving a log or its digest does not make the record investigation-ready unless its stage, affected asset, security meaning, and relationship to other evidence are represented explicitly. Supply-chain mechanisms such as Sigstore provide complementary signing and transparency capabilities [4]. However, they do not by themselves organise heterogeneous scanner, policy, identity, and runtime records into a common investigation model.

This paper presents DevSecLogs, a research prototype that operationalises a stage-aware evidence model connecting observations to run, lifecycle stage, source, actor, asset, requirement, supporting evidence, deterministic reason code, priority, and verification status. It normalises heterogeneous records across source, build, test, package, deploy, and runtime, then supports AI-assisted triage, deterministic explanation, cross-stage linking, and integrity verification. DevSecLogs is an investigation layer, not a replacement for scanners, policy engines, signing tools, or security information and event management systems.

Our earlier work introduced DevSecLogs as a CI/CD log-intelligence vision [6]; separate studies examined topic modelling [7], sequential anomaly detection [10], and blockchain-supported evidence management [8]. Relative to that work and the requirements-to-evidence framework [9], this paper contributes an implemented evidence metamodel, executable reason-code evaluation, cross-stage linking, an analyst-facing workflow, and post-capture verification. AI outputs remain prioritisation signals; investigation-ready findings require observable evidence, pipeline context, and inspectable reasons.

The modelling contribution lies in explicit relationships among activities, requirements, observations, artefacts, reasons, and verification records. Publication before completion of a required test maps to PUBLISH_BEFORE_TEST, while a digest mismatch maps to CHECKSUM_MISMATCH. These are defined evidence conditions rather than free-form explanations, and related objects can be grouped into cross-stage bundles for integrity checking.

This paper makes three contributions:

1. a stage-aware CI/CD security-evidence model connecting heterogeneous observations with lifecycle stages, actors, assets, requirements, reason codes, priorities, and verification metadata;

2. an implementation of the model in an analyst-facing prototype supporting evidence ingestion, stage normalisation, AI-assisted prioritisation, deterministic explanation, cross-stage linking, and integrity verification; and

3. an end-to-end demonstration and preliminary validation using representative CI/CD security scenarios.


DevSecLogs represents CI/CD security information through a stage-aware evidence model. The model provides a common structure for records originating from repository events, build logs, test outcomes, scanner reports, registry actions, deployment policies, identity traces, and runtime telemetry. It retains the contextual and semantic properties needed to determine where an observation occurred, what it concerns, why it is security-relevant, and whether its recorded state can later be verified. The metamodel is domain-specific, but its separation of activities, agents, entities, relations, and bundles is informed by W3C PROV-DM [3]; its explicit connection between requirements and supporting evidence is also related to SACM-based assurance modelling [12]. We use these as conceptual neighbours and do not claim formal conformance.

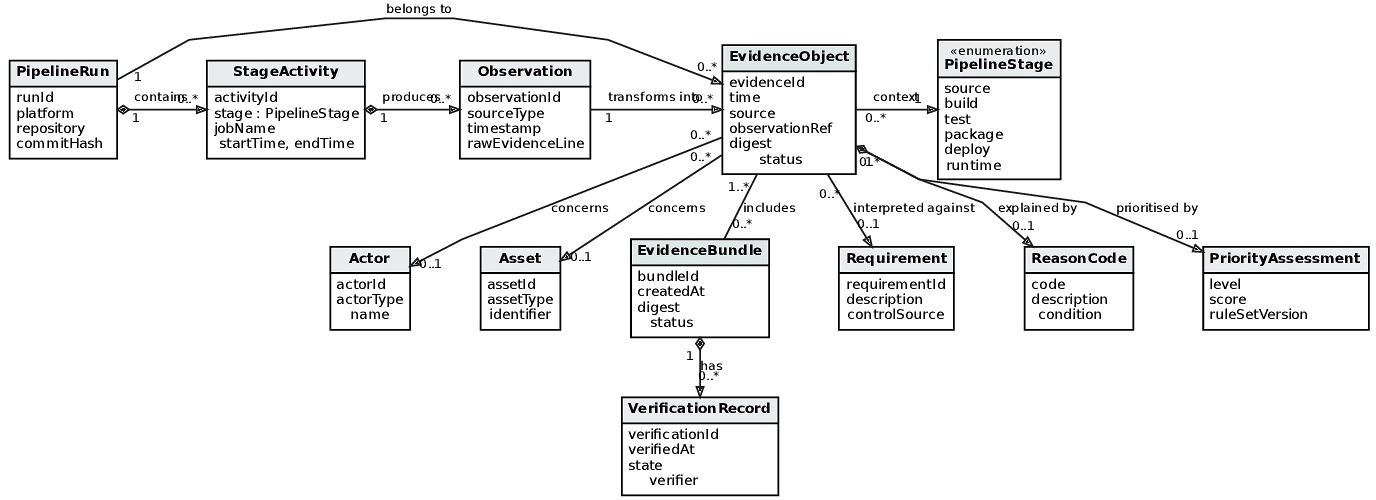

A UML class diagram showing pipeline runs, stage activities, observations, evidence objects, actors, assets, requirements, reason codes, priorities, evidence bundles, verification records, and their multiplicities.

Metamodel versus serialisation. The metamodel and the JSON representation serve different purposes. JSON is a concrete serialisation used by the prototype, and a JSON schema can validate field presence, types, and enumerated values. The metamodel defines the domain semantics that span records: class relationships and multiplicities, stage membership, requirement-to-observation links, bundle membership, and temporal or shared-asset relations. For example, every EvidenceObject belongs to one pipeline run and one primary stage; PUBLISH_BEFORE_TEST requires an explicit precedence relation between publication and a required test; and a BundleRelation must be justified by a shared run, asset, actor, requirement, or temporal dependency. These investigation constraints are not provided by the serialisation format alone.

Pipeline context. A pipeline run R is associated with activities across six logical lifecycle stages:

Evidence object. The principal unit of analysis is an evidence object:

A raw record becomes an evidence object only after sufficient context has been assigned. At minimum, an object identifies its pipeline run, primary stage, source, observation, and security interpretation. Missing contextual properties are represented explicitly as unknown rather than inferred without evidence.

Requirements and reason codes. A requirement represents an expected security property, such as “an artefact must not be published before required tests complete”, “a deployed image must possess an approved signature”, or “a pipeline identity must use only the permissions required for its task”. Requirements may originate from pipeline policy, organisational controls, scenario-specific security specifications, or recognised CI/CD guidance such as NIST SP 800-204D and the OWASP CI/CD risk taxonomy [1, 5].

A reason code denotes an inspectable condition relating an observation to a requirement. For example,

Reason codes are deterministic and evidence-checkable. Topic labels and anomaly scores may identify records requiring attention, but they do not independently determine the reason code. A reason is assigned only when its defined observable condition is satisfied.

Cross-stage evidence bundles. Individual evidence objects may be related through a shared run, actor, asset, requirement, or temporal dependency. DevSecLogs groups relevant objects into an evidence bundle:

For selected run bundles, the implementation sorts normalised events by stage order, file name, and line number; projects each event to its stage, timestamp, message, and reason codes; serialises the resulting array as JSON; and computes a SHA-256 digest. Recomputing the digest supports post-capture consistency checking. The current browser demonstration stores both evidence state and its anchor locally; therefore, it detects accidental or non-coordinated modification but does not resist an adversary who can modify both values. Strong adversarial tamper evidence requires an independently protected commitment, such as the experimental Hyperledger Fabric path [8]. Verification also does not prove that the originating record was complete or truthful before capture.

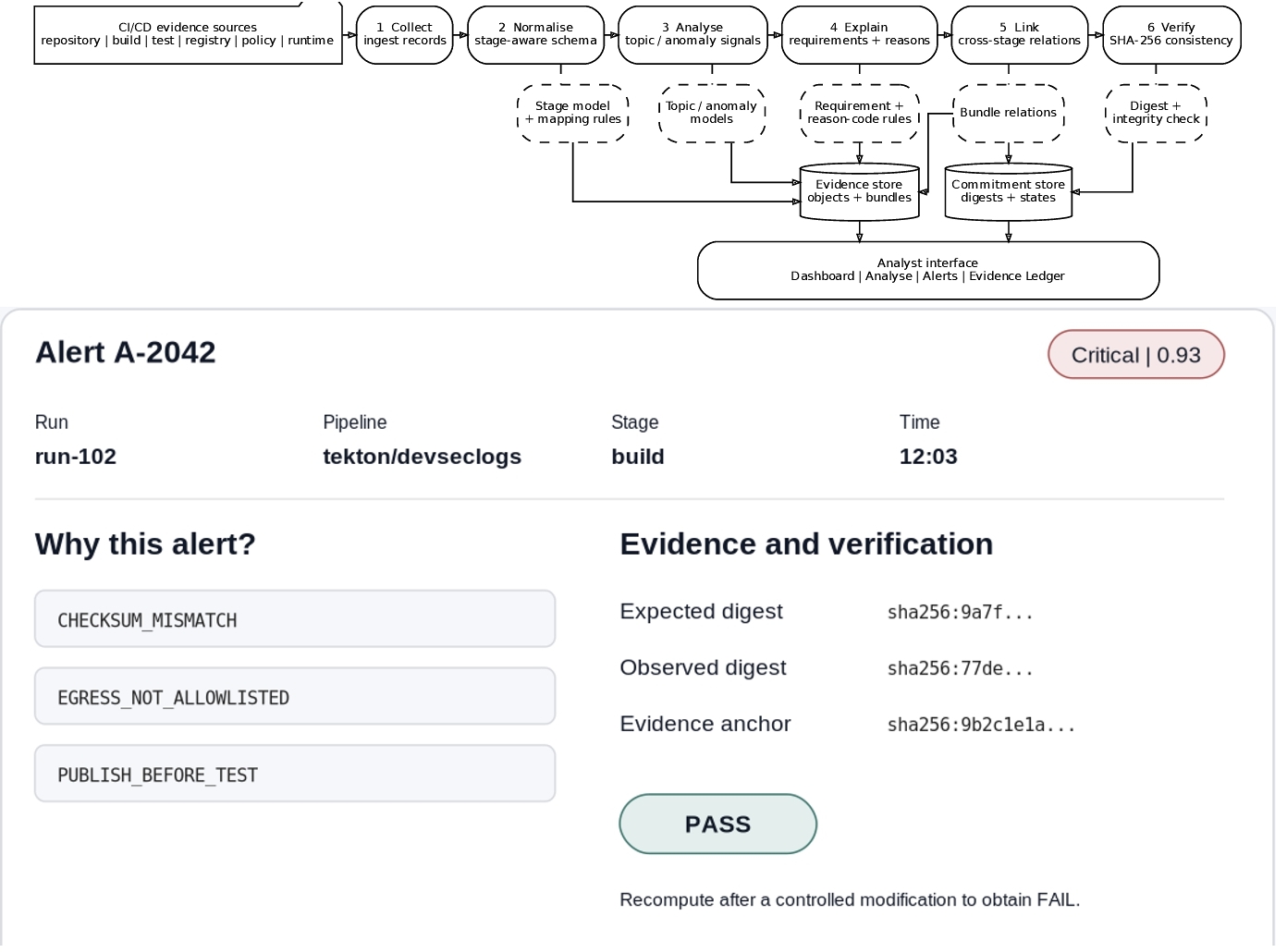

DevSecLogs implements the evidence model through a modular architecture comprising an analyst interface, evidence-processing services, AI-assisted analysis, requirements reasoning, evidence management, and cloud deployment. Figure 2 presents the six-step workflow and a representative prototype alert view that exposes the run and stage context, deterministic reason codes, digest evidence, and verification result.

DevSecLogs implementation view with two vertically arranged panels. The first shows the six-step CI/CD evidence-processing workflow. The second shows the prototype alert interface with run and stage context, deterministic reason codes, digest evidence, an evidence anchor, and a verification result.

Architecture. The browser-based interface provides dashboard, log-analysis, alert, run, and evidence-ledger views. A separately deployed Flask service supports topic-model inference, while the demonstration application performs stage mapping, deterministic reason evaluation, bundle construction, and digest verification. This separation prevents probabilistic topic or anomaly signals from independently deciding why an observation constitutes security evidence.

Model realisation. Evidence objects and run bundles are represented as JSON records, but the JSON representation is an implementation carrier rather than the model contribution itself. Source-specific rules instantiate the stage, actor, and asset associations; auditable predicates and regular-expression rules instantiate security requirements and reason codes; and linking rules create explicit cross-object relations. The demonstration recomputes a SHA-256 hash chain and reports PASS or FAIL. The browser-local anchor provides a consistency check, not adversarially independent protection; the Hyperledger Fabric integration remains the experimental external-anchoring path [8].

The evidence layer complements supply-chain attestation and signing systems. For example, in-toto link metadata and Sigstore verification results can enter the model as observations alongside test, policy, identity, scanner, and runtime records [4, 11].

Running example. The demonstration uses prepared records for pipeline tekton/devseclogs, run run-102, and container artefact api:42. The fixture contains a required test still running when the artefact is published, an expected/observed digest mismatch, and an outbound destination outside the configured allowlist. This single run is used throughout the interface to show how raw observations become model instances and then a linked investigation bundle.

Evidence-processing workflow. Collect accepts pasted log excerpts, structured records, and preloaded stage-specific samples. Each input is associated with available metadata, including pipeline, run identifier, source type, timestamp, and originating platform.

During Normalise, platform-specific records are mapped to the common JSON evidence schema. Stage inference uses configurable filename and content rules, while available actors, assets, event types, timestamps, and evidence lines are retained. Unknown properties remain unspecified rather than being inferred without supporting evidence.

Analyse generates prioritisation signals. Topic modelling groups textual records into semantically related security themes, while anomaly-oriented processing identifies behaviour that differs from expected patterns. These outputs are supporting attributes rather than final security decisions.

During Explain, the tool evaluates evidence conditions associated with security requirements. When a condition is satisfied, the corresponding deterministic reason code is attached to the evidence object. The interface displays the reason code with its requirement, affected stage, evidence line, and priority level so that an analyst can inspect the basis of the finding.

Link connects evidence objects using shared pipeline runs, artefacts, actors, requirements, and temporal relationships. A skipped test, premature package publication, failed signature check, and policy-denied deployment may therefore be presented as a connected investigation pathway rather than independent alerts. The link does not by itself establish that an attack occurred.

Finally, Verify recomputes the canonical bundle and SHA-256 hash chain. The demonstration reports PASS when the recomputed last hash matches the stored anchor and FAIL otherwise.

The demonstration addresses the following evaluation question:

EQ1: Can DevSecLogs construct, link, explain, and verify stage-aware security evidence for representative CI/CD security scenarios?

The primary scenario replays the prepared run-102 fixture introduced in Section 3. A test record at 11:35:09 remains active when api:42 is published at 11:35:12; DevSecLogs therefore links the two observations and assigns PUBLISH_BEFORE_TEST. A subsequent record contains different expected and observed SHA-256 digests, producing CHECKSUM_MISMATCH; an outbound destination outside the fixture allowlist produces EGRESS_NOT_ALLOWLISTED. The tool connects these observations through the shared run, artefact, stages, and temporal relations. The analyst then inspects the bundle and performs the browser-local consistency check, obtaining PASS before a controlled modification and FAIL afterwards.

DevSecLogs complements scanners, policy engines, provenance systems, and observability platforms by connecting heterogeneous security outputs to runs, stages, assets, requirements, deterministic reasons, bundles, and verification records. The demonstration shows model instantiation, cross-stage linking, rule evaluation, bundle construction, and local consistency checking while keeping prioritisation signals separate from evidence-checkable security interpretation. Adversarial tamper evidence requires independently protected commitments. Future work will harden external anchoring, add native connectors, improve concurrent-event correlation, and evaluate investigation usefulness with practitioners.
